  • product name: Top push SMD7.4*9.1mm
  • Product Number: 1TS005E
  • Material: PPA/BRASS-Au/SUS
  • Scope of application: Industrial control, power meter switch, Netcom telecommunications equipment


Product case: Electrical equipment, industrial control, network equipment, household electrical appliances, toys

Reference alternative:

  1. 1TS005E







Item Tact switch detail
Article number 1TS005E
Model 1TS005E
Series 1TS005
(LxW) (mm) 9.1*7.4mm
(H) (mm) 3.85±0.1mm
Installation height (mm) 3.85±0.1mm
Operation Side-press type
Welding type SMD
Live-fire type Surface mount
Maximum rating DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF)
Operating force 150gf
Stroke Short stroke
Stroke (mm) 0.25±0.1mm
Operating life 100000 or more
Operating temperature –40℃~+90℃
Storage temperature –40℃~+90℃
Package style Reel packaging
Mini pakage 300PCS/reel
300PCS/Packaging
CTNS/QTY 12reel/ctn

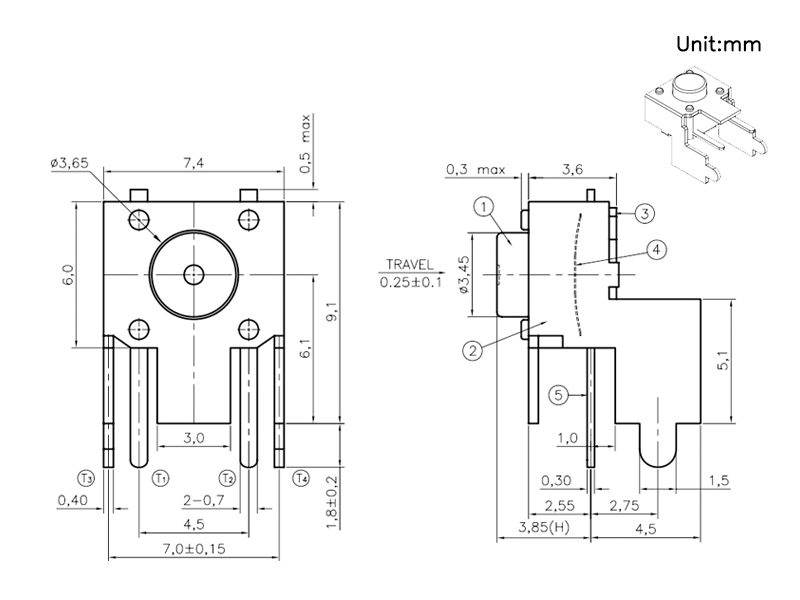

Dimensions:

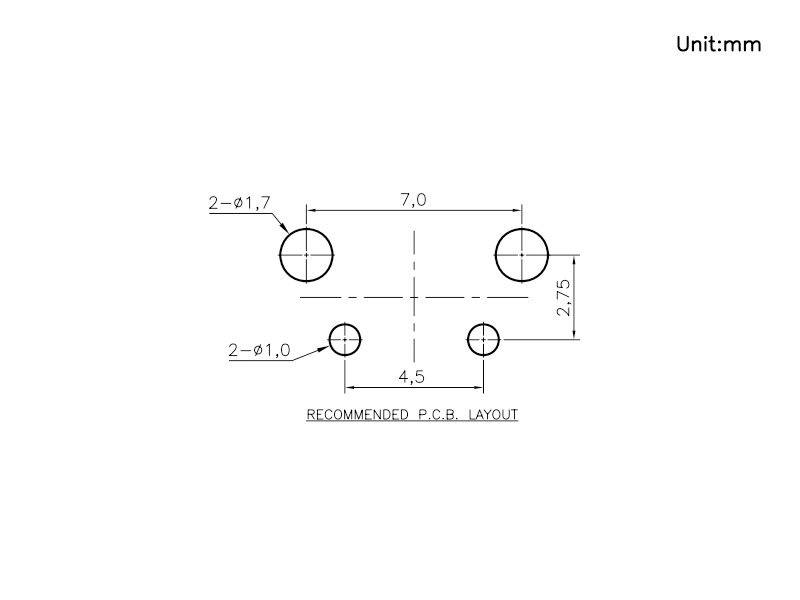

Welding diagram:

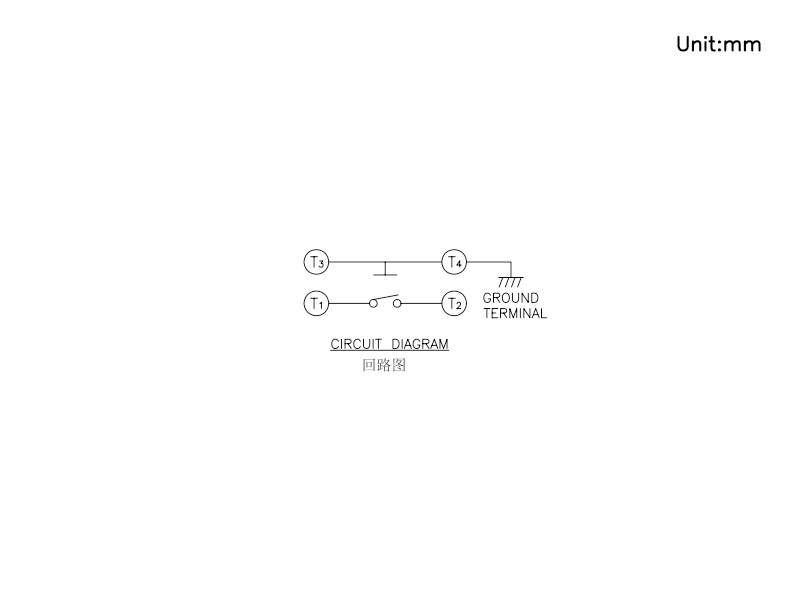

Circuit diagram:

Key words : Top push Switch,1TS005E
