| Item |

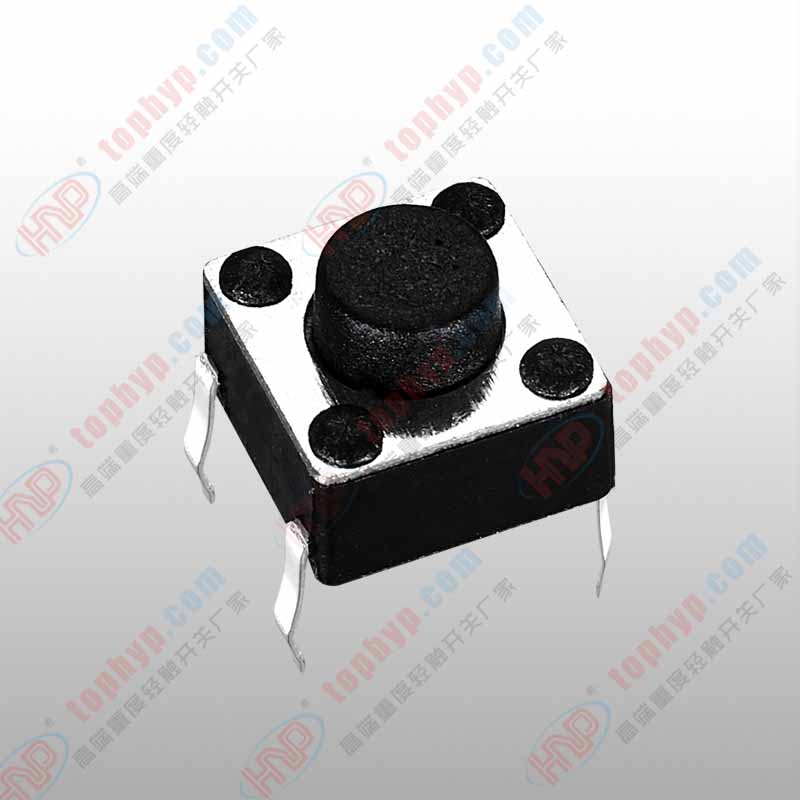

Tact switch detail |
Tact switch detail 2 |
| Article number |
1TS005A |
1TS005A |
| Model |
1TS005A |
1TS005A |
| Series |
1TS005 |
1TS005 |

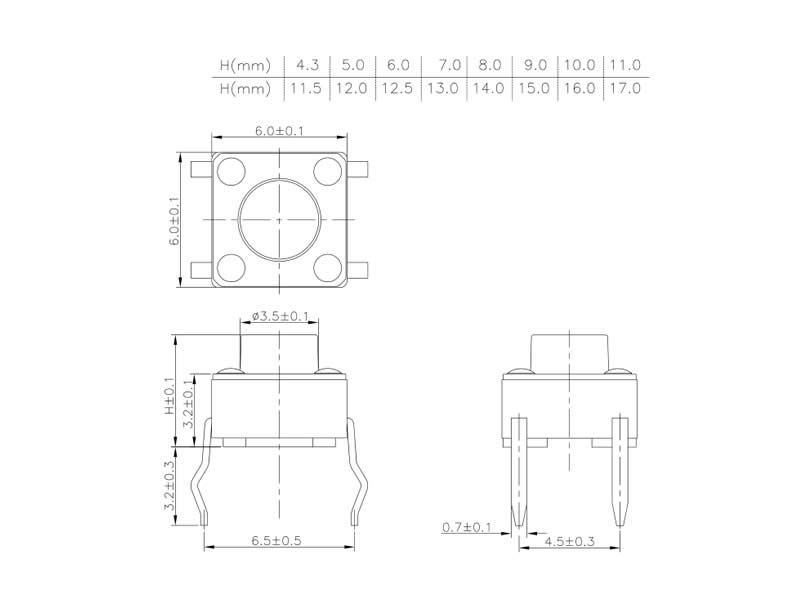

| (LxW) (mm) |
6*6mm |
6*6mm |
| (H) (mm) |
4.3/5.0/7.0/11.0/12.0±0.1mm |
4.3/5.0/7.0/11.0/12.0±0.1mm |

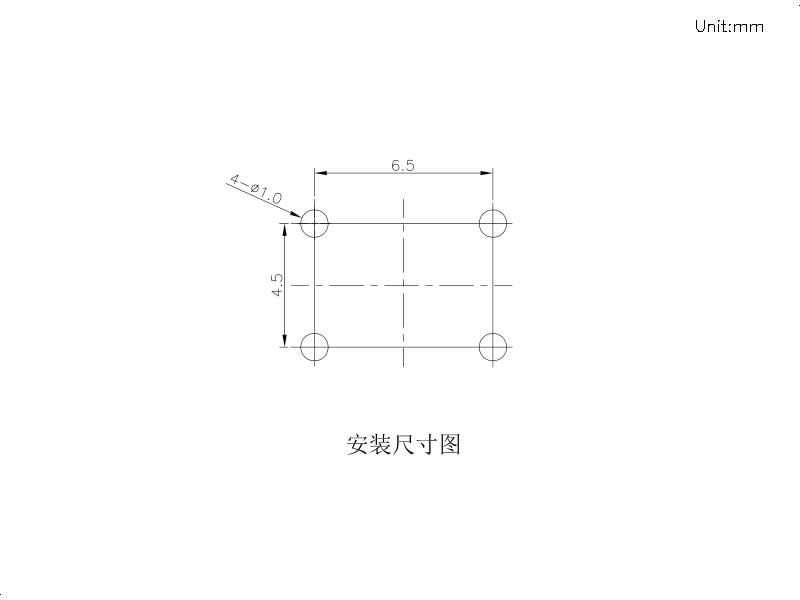

| Installation height (mm) |
4.3/5.0/7.0/11.0/12.0±0.1mm |
4.3/5.0/7.0/11.0/12.0±0.1mm |

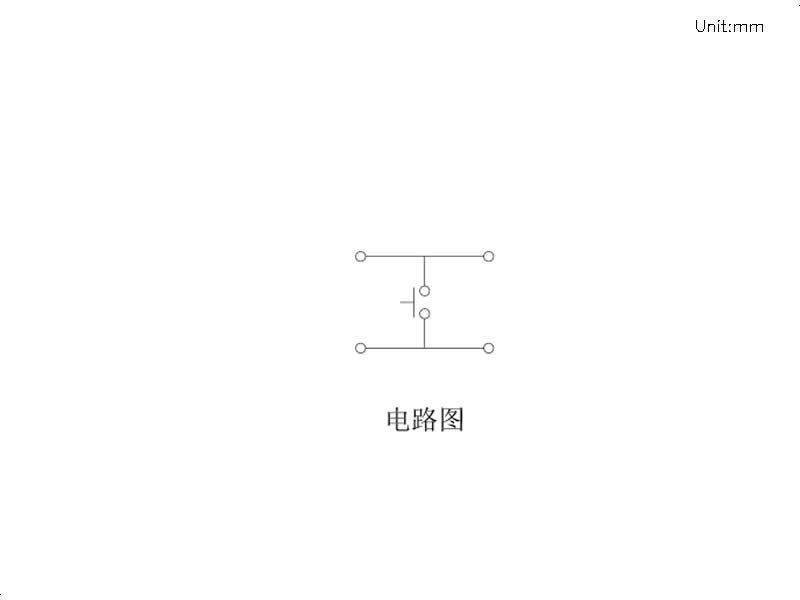

| Operation |
Top-press type |
Top-press type |
| Welding type |
SMD |
SMD |
| Live-fire type |
Surface mount |
Surface mount |
| Maximum rating |
DC 12V/50mA |
DC 12V/50mA |
| Contact resistance (<mΩ) |
500mΩ max. |
500mΩ max. |
| Insulation resistance (MΩ at 100V DC) |
DC100V 60S 100MΩ min. |
DC100V 60S 100MΩ min. |
| Withstanding voltage |
AC250V(50~60HZ) 60S min. |
AC250V(50~60HZ) 60S min. |
| Response time |
<10ms (ON, OFF) |
<10ms (ON, OFF) |
| Operating force |
160gf |
250gf |
| Stroke |
Short stroke |
Short stroke |
| Stroke (mm) |
0.25±0.1mm |
0.25±0.1mm |
| Operating life |
100000 or more |
100000 or more |
| Operating temperature |
–40℃～+90℃ |
–40℃～+90℃ |
| Storage temperature |
–40℃～+90℃ |
–40℃～+90℃ |
| Package style |
Reel packaging |
Reel packaging |
| Mini pakage |
1000PCS/reel |
1000PCS/reel |
| 1000PCS/Packaging |
1000PCS/Packaging |
| CTNS/QTY |
12reel/ctn |
12reel/ctn |
