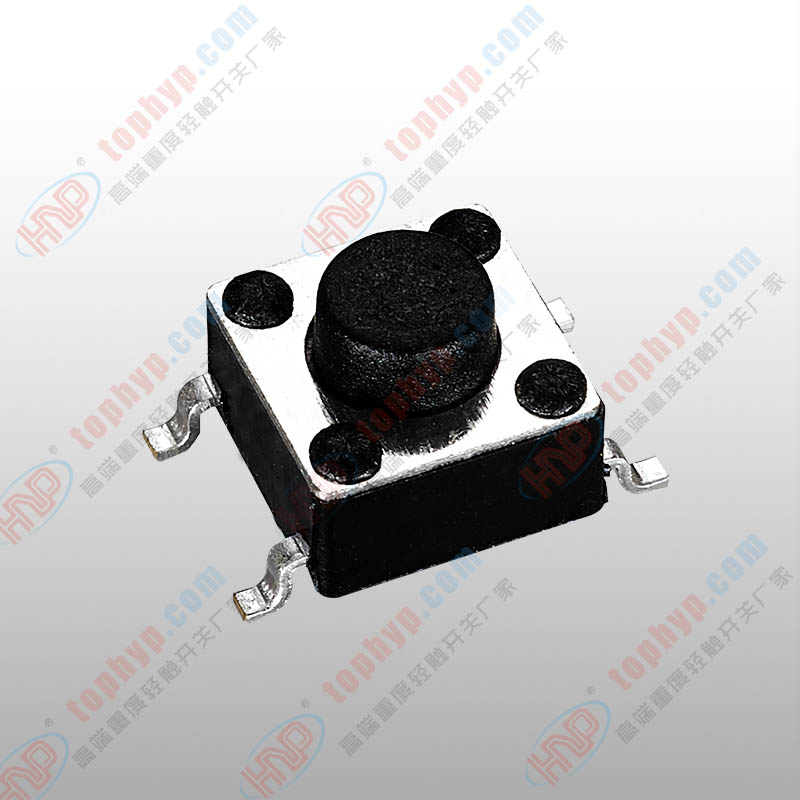

  • product name: Top push SMD6*6mm
  • Product Number: 1TS005F
  • Material: PPA/BRONZE/STAINLESS STEEL
  • Scope of application: Smart Speakers, Headphones, Toys


Low-cost solutions: Electrical equipment, industrial control, network equipment, household electrical appliances, toys

Reference alternative:

  1. 1TS005F







Item Tact switch detail Tact switch detail 2
Article number 1TS005F 1TS005F
Model 1TS005F 1TS005F
Series 1TS005 1TS005
(LxW) (mm) 6*6mm 6*6mm
(H) (mm) 4.3/5.0/7.0/11.0/12.0±0.1mm 4.3/5.0/7.0/11.0/12.0±0.1mm
Installation height (mm) 4.3/5.0/7.0/11.0/12.0±0.1mm 4.3/5.0/7.0/11.0/12.0±0.1mm
Operation Top-press type Top-press type
Welding type SMD SMD
Live-fire type Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min. DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min. AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF) <10ms  (ON, OFF)
Operating force 160gf 250gf
Stroke Short stroke Short stroke
Stroke (mm) 0.25±0.1mm 0.25±0.1mm
Operating life 100000 or more 100000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging
Mini pakage 1000PCS/reel 1000PCS/reel
1000PCS/Packaging 1000PCS/Packaging
CTNS/QTY 12reel/ctn 12reel/ctn

Dimensions:

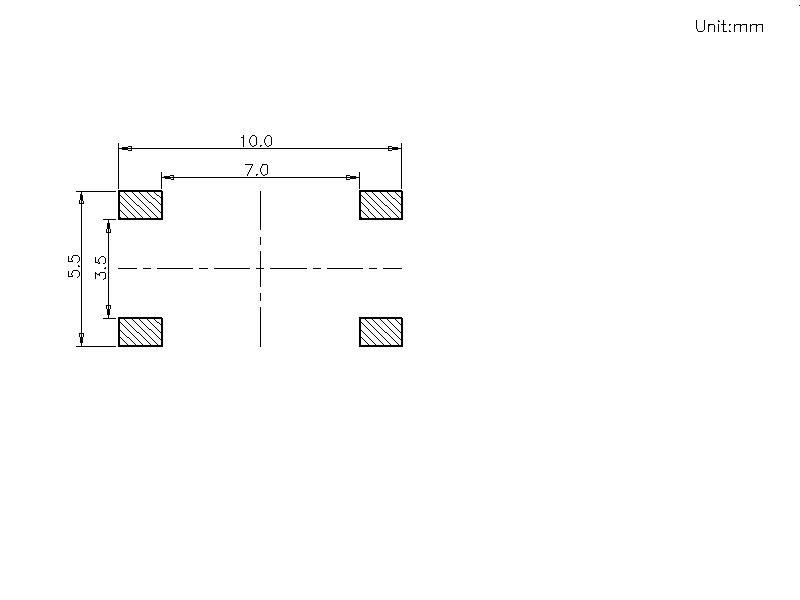

Welding diagram:

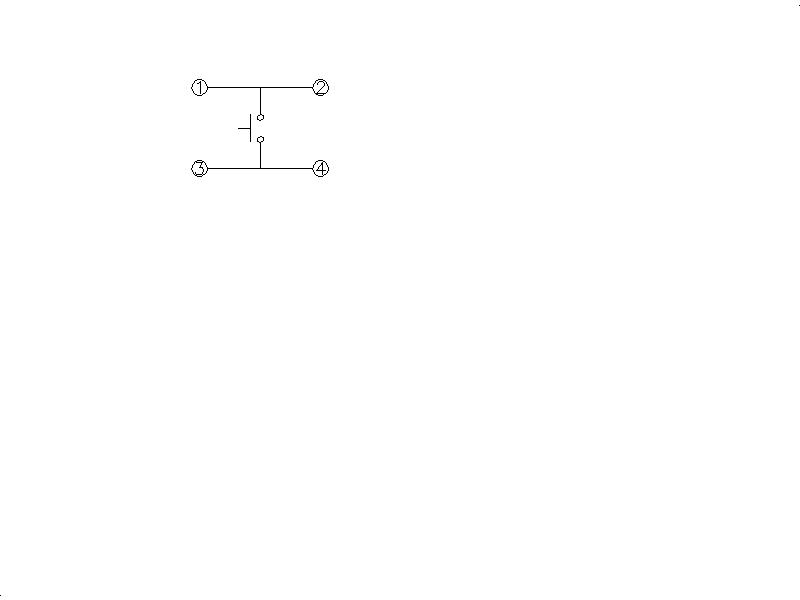

Circuit diagram:
