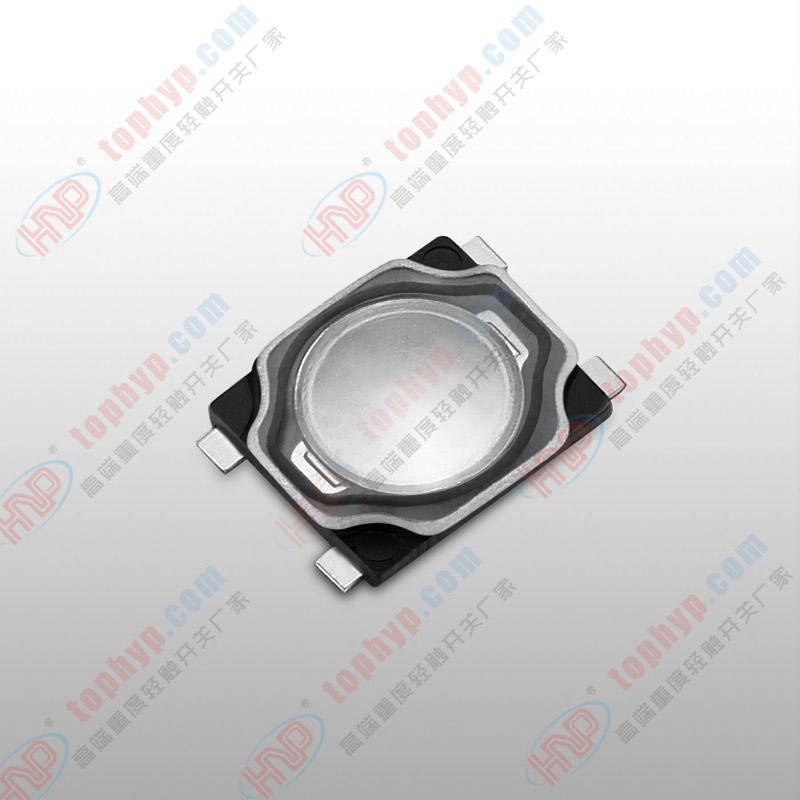

  • product name: Top push SMD3*2.6*0.45mm
  • Product Number: 1TS016B
  • Material: LCP/SUS301/SUS304/AG
  • Scope of application: Mobile phone switch,earphone switch ,intelligent wear equipment switch,Digital 3C Products switch,5g communication products switch,Mifi,CPE switch,Game console switch,Smart speaker switch,Driving recorder switch,car central control switch,Smart watch switch,


Ultra-small tact switch, widely used in products that require volume, supports IP67 waterproof rating, high-quality materials, and provides more stable performance.

Reference alternative:

  1. Citizen:LS71C1-T,LS71C2-T,LS71C3-T,LS71C4-T







Item Tact switch detail Tact switch detail 2
Article number 1TS016B 1TS016B
Model 1TS016B 1TS016B
Series 1TS016 1TS016
(LxW) (mm) 3*2.6mm 3*2.6mm
(H) (mm) 0.45±0.1mm 0.45±0.1mm
Installation height (mm) 0.45±0.1mm 0.45±0.1mm
Operation Top-press type Top-press type
Welding type SMD SMD
Live-fire type Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min. DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min. AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF) <10ms  (ON, OFF)
Operating force 160gf 240gf
Stroke Short stroke Short stroke
Stroke (mm) 0.13±0.05mm 0.13±0.05mm
Operating life 300000 or more 100000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging
Mini pakage 8000PCS/reel 8000PCS/reel

CTNS/QTY 12reel/ctn 12reel/ctn

Dimensions:



Welding diagram:



Circuit diagram:
