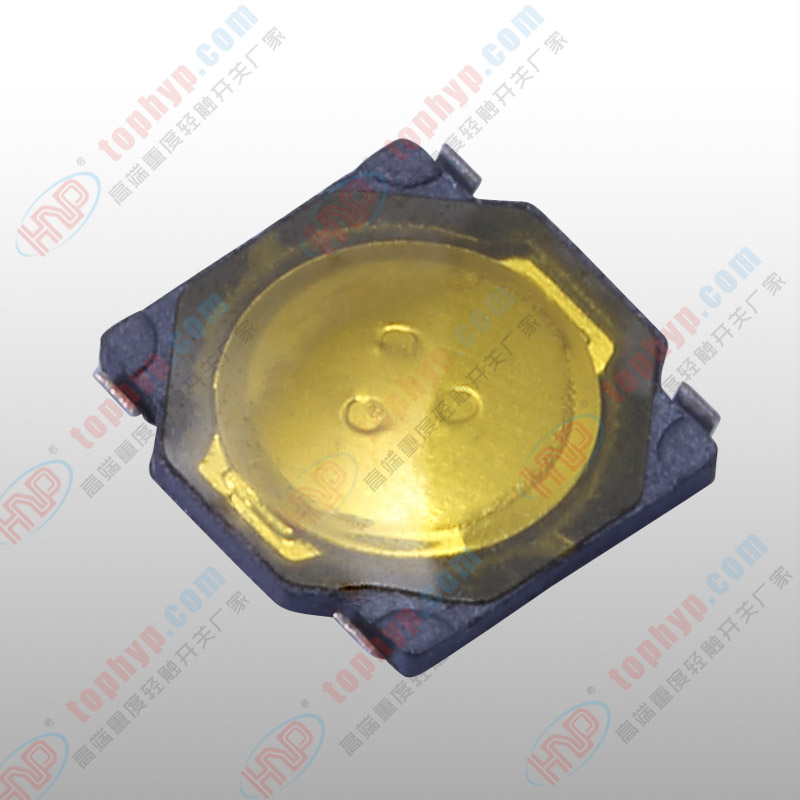

  • product name: Top push SMD3.7*3.7*0.4mm
  • Product Number: 1TS017C
  • Material: PE/BRONZE/STAINLESS STEEL
  • Scope of application: earphones, small instruments, 3C digital products, medical instruments


Low-cost solutions: earphones, small instruments, 3C digital products, medical instruments

Reference alternative:

  1. EVQ6P6B40,EVQ9P6B40,EVQP6DB35,EVQP6PB35,SKRWADE030,SKRWAEE030,LS17







Item Tact switch detail Tact switch detail 2
Article number 1TS017C 1TS017C
Model 1TS017C 1TS017C
Series 1TS017 1TS017
(LxW) (mm) 3.7*3.7mm 3.7*3.7mm
(H) (mm) 0.4±0.1mm 0.4±0.1mm
Installation height (mm) 0.4±0.1mm 0.4±0.1mm
Operation Top-press type Top-press type
Welding type SMD SMD
Live-fire type Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min. DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min. AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF) <10ms  (ON, OFF)
Operating force 160gf 250gf
Stroke Short stroke Short stroke
Stroke (mm) 0.13±0.05mm 0.13±0.05mm
Operating life 100000 or more 100000 or more
Operating temperature –40℃~+90℃ –40℃~+90℃
Storage temperature –40℃~+90℃ –40℃~+90℃
Package style Reel packaging Reel packaging
Mini pakage 10000PCS/reel 10000PCS/reel

CTNS/QTY 12reel/ctn 12reel/ctn

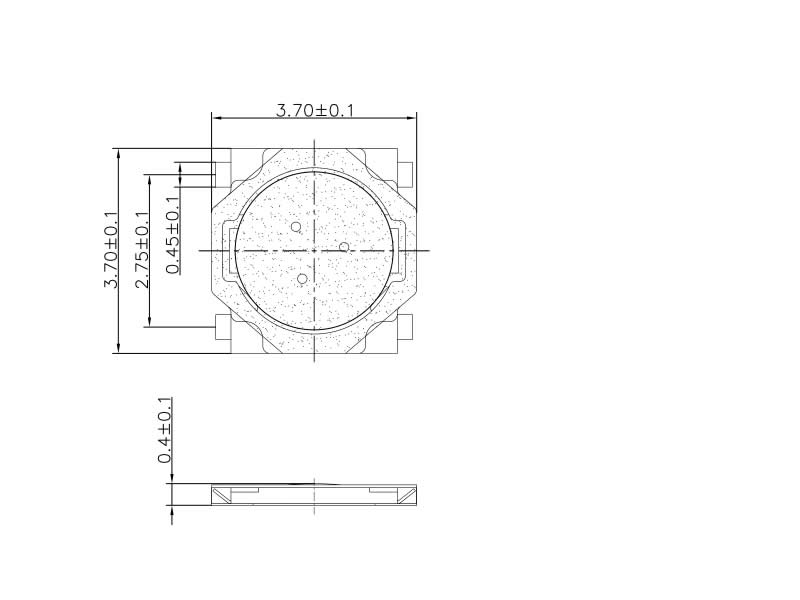

Dimensions:

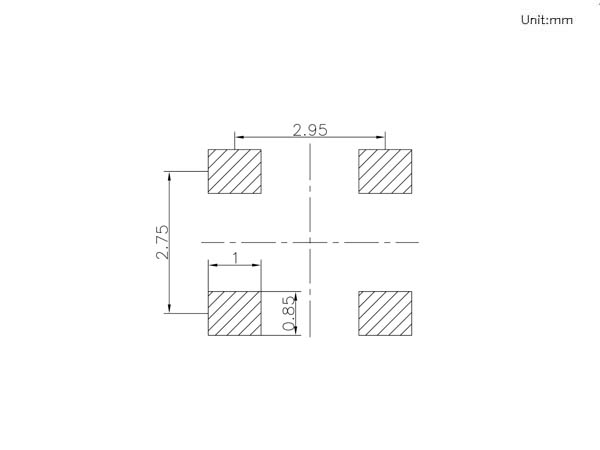

Welding diagram:

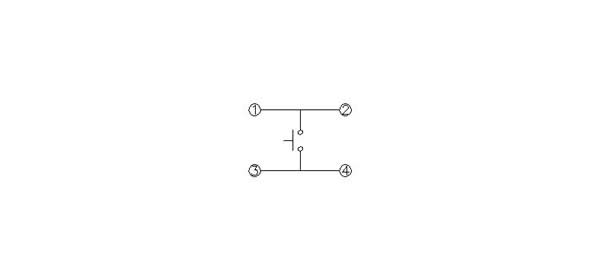

Circuit diagram:

Key words : Top push Switch,1TS017C,Reference alternative EVQ6P6B40,EVQ9P6B40,EVQP6DB35,EVQP6PB35,SKRWADE030,SKRWAEE030,LS17
