1TS026A

Browse similar products

Next : 1TS028A

  • product name: Top push SMD2.6*1.6*0.55mm
  • Product Number: 1TS026A
  • Material: LCP/SUS301/SUS304/AG
  • Scope of application: Mobile phone switch,earphone switch ,intelligent wear equipment switch,Digital 3C Products switch,5g communication products switch,Mifi,CPE switch,Game console switch,Smart speaker switch,Driving recorder switch,car central control switch,Smart watch switch,


Ultra-small tact switch, widely used in products that require volume, supports IP67 waterproof rating, high-quality materials, and provides more stable performance.

Reference alternative:

  1. Panasonic:EVPBB0AAB000,EVPBB2A9B000,EVPBB4A9B000
  2. ALPS:SKTAACE010,SKTAAAE010,SKTADAE010
  3. Citizen:LS162D-T







Item Tact switch detail Tact switch detail 2
Article number 1TS026A 1TS026A
Model 1TS026A 1TS026A
Series 1TS026 1TS026
(LxW) (mm) 2.6mm*1.6mm 2.6mm*1.6mm
(H) (mm) 0.6±0.1mm 0.6±0.1mm
Installation height (mm) 0.6±0.1mm 0.6±0.1mm
Operation Top-press type Top-press type
Welding type SMD SMD
Live-fire type Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min. DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min. AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF) <10ms  (ON, OFF)
Operating force 160gf 240gf
Stroke Short stroke Short stroke
Stroke (mm) 0.12±0.05mm 0.12±0.05mm
Operating life 200000 or more 200000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging
Mini pakage 10000PCS/reel 10000PCS/reel

CTNS/QTY 13reel/ctn 13reel/ctn

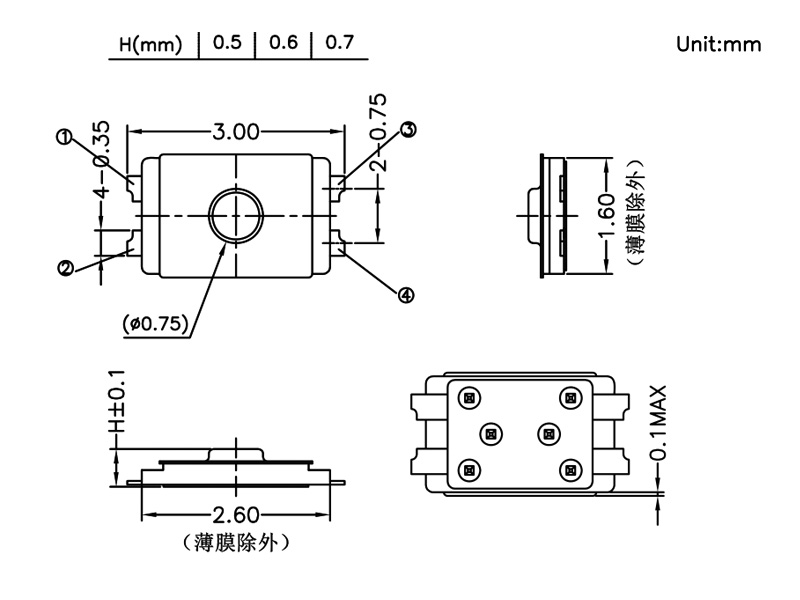

Dimensions:

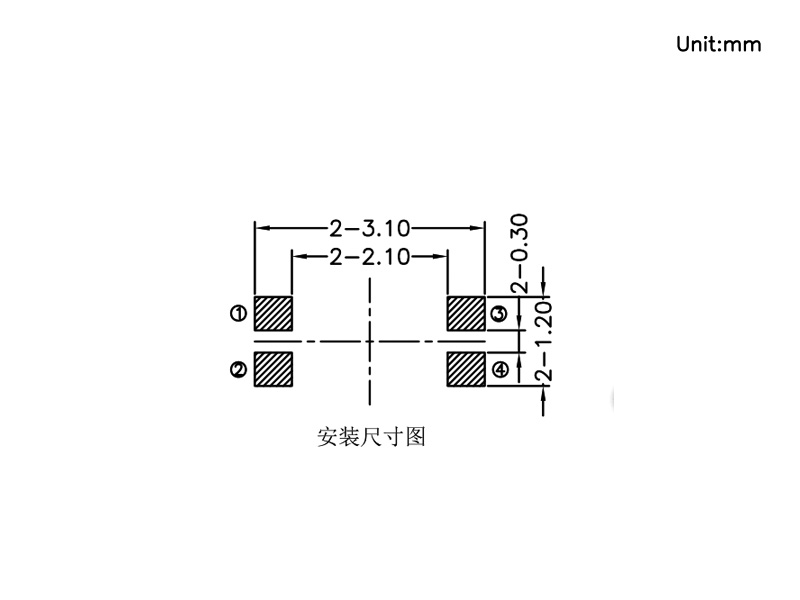

Welding diagram:

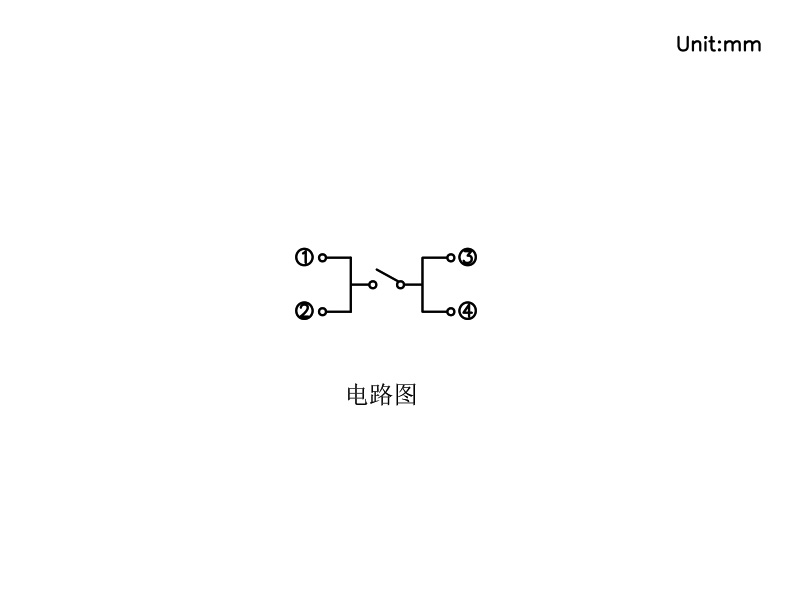

Circuit diagram:

Key words : Top push waterproof switch,1TS026A Reference alternative；EVPBB0AAB000,EVPBB2A9B000,EVPBB4A9B000;SKTAACE010,SKTAAAE010,SKTADAE010;LS162D-T
