  • product name: Side SMD3.9*2.9*1.55mm
  • Product Number: 1TS032A
  • Material: LCP/SUS301/SUS304/AG
  • Scope of application: Mobile phone switch,earphone switch ,intelligent wear equipment switch,Digital 3C Products switch,5g communication products switch,Mifi,CPE switch,Game console switch,Smart speaker switch,Driving recorder switch,car central control switch,Smart watch switch,


Ultra-small tact switch, widely used in products that require volume, supports IP67 waterproof rating, high-quality materials, and provides more stable performance.

Reference alternative:

  1. Panasonic:EVPAKE31A
  2. ALPS:SKTDLDE010
  3. Citizen:LS12 series







Item Tact switch detail
Article number 1TS032A
Model 1TS032A
Series 1TS032
(LxW) (mm) 3.9mm×1.55mm
(H) (mm) 2.9±0.1mm
Installation height (mm) 2.9±0.1mm
Operation Side-press type
Welding type SMD
Live-fire type Surface mount
Maximum rating DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF)
Operating force 160gf
Stroke Short stroke
Stroke (mm) 0.12±0.05mm
Operating life 200000 or more
Operating temperature –40℃～+90℃
Storage temperature –40℃～+90℃
Package style Reel packaging
Mini pakage 10000PCS/reel

CTNS/QTY 13reel/ctn

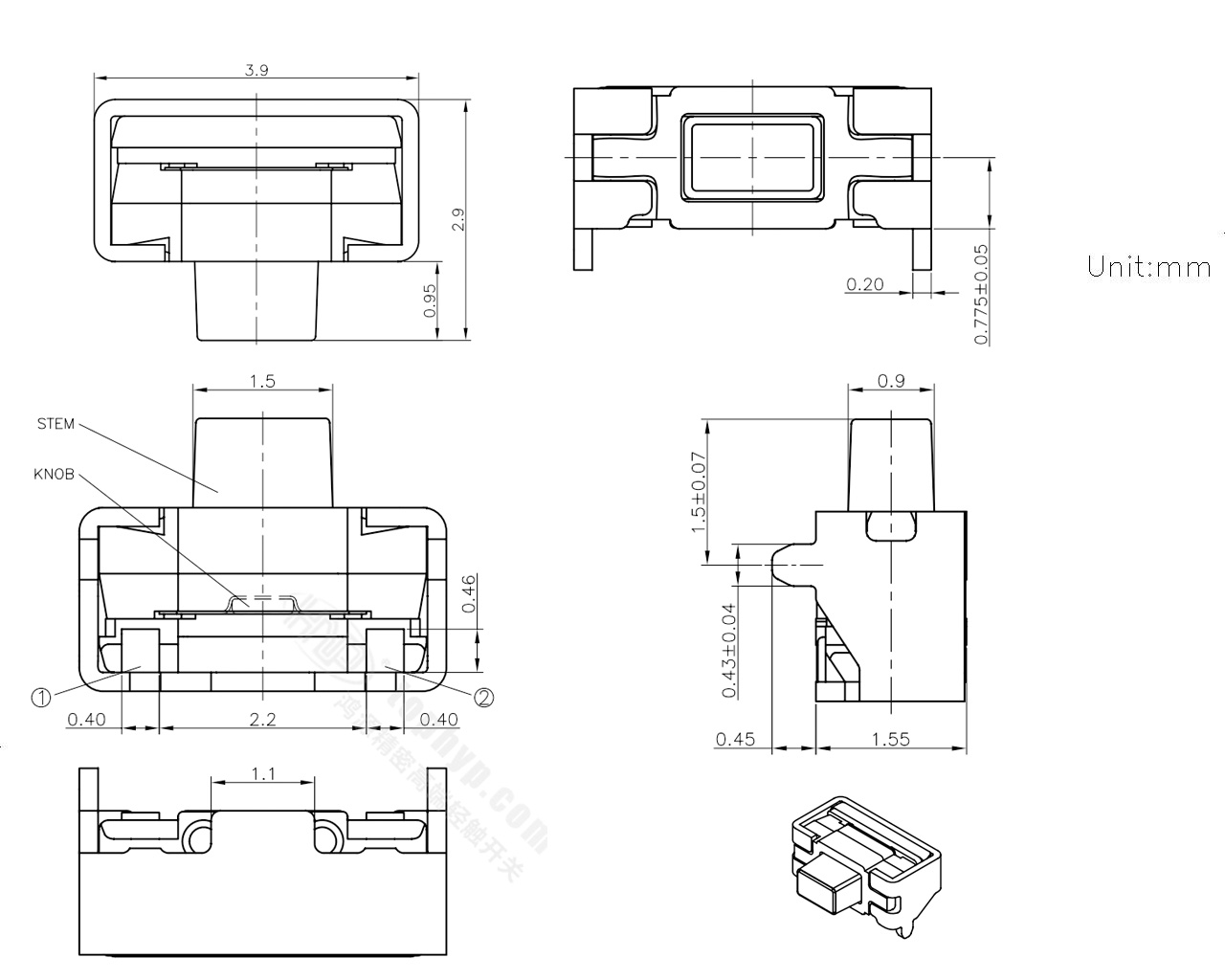

Dimensions:

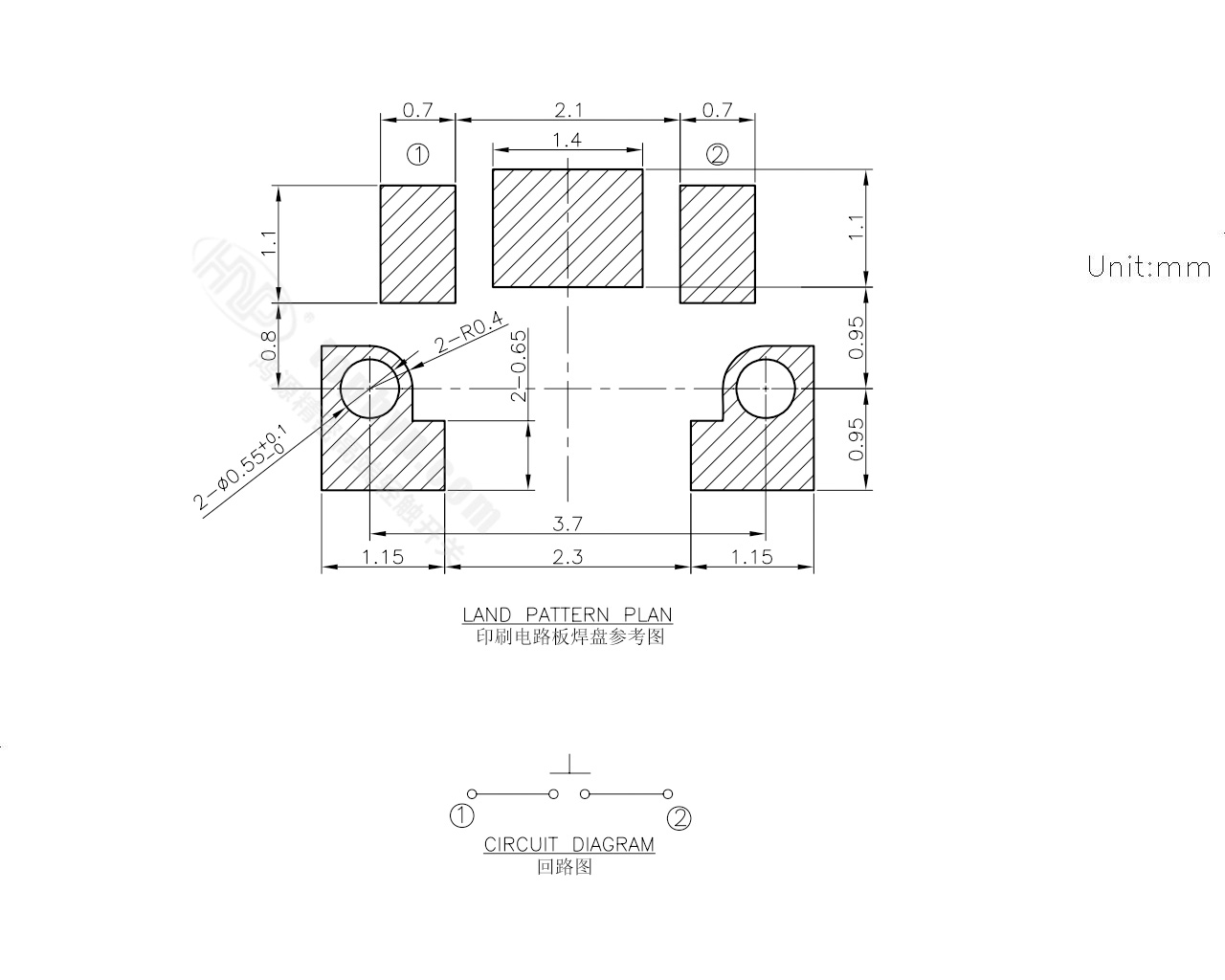

Welding diagram:

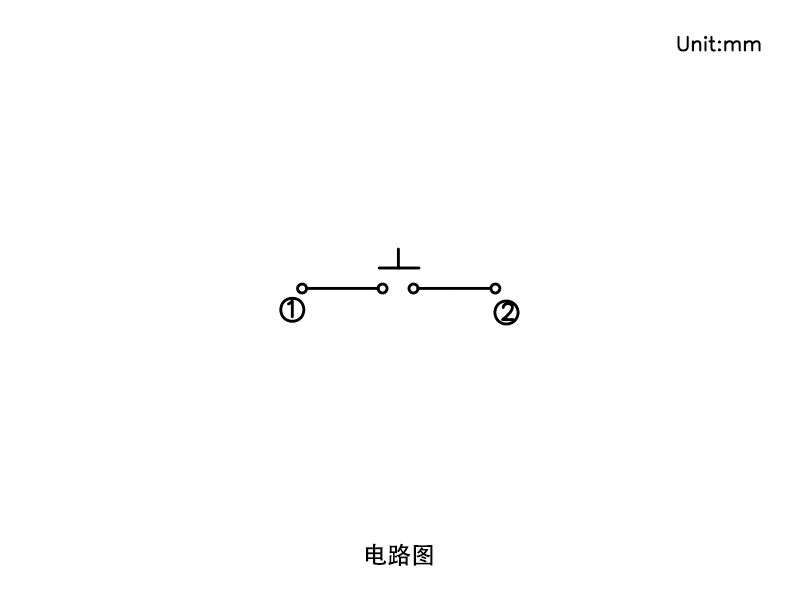

Circuit diagram:
