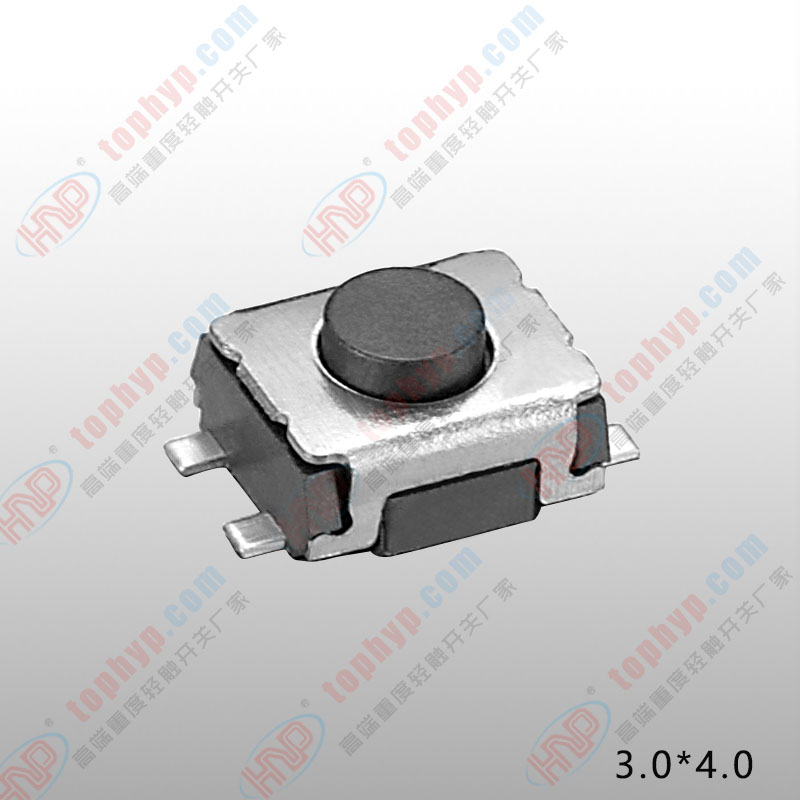

  • product name: Top push SMD3*4*2/2.5mm
  • Product Number: 1TS008B
  • Material: LCP/BRONZE/STAINLESS STEEL
  • Scope of application: Smart Speakers, Headphones, Toys


Low-cost solutions: earphones, small instruments, 3C digital products, medical instruments

Reference alternative:

  1. 1TS008B







Item Tact switch detail
Article number 1TS008B
Model 1TS008B
Series 1TS008
(LxW) (mm) 3.65*3.0mm
(H) (mm) 2.0/2.5±0.1mm
Installation height (mm) 2.0/2.5±0.1mm
Operation Top-press type
Welding type SMD
Live-fire type Surface mount
Maximum rating DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF)
Operating force 250gf
Stroke Short stroke
Stroke (mm) 0.2±0.1mm
Operating life 100000 or more
Operating temperature –40℃～+90℃
Storage temperature –40℃～+90℃
Package style Reel packaging
Mini pakage 3000PCS/reel
2000PCS/Packaging
CTNS/QTY 13reel/ctn

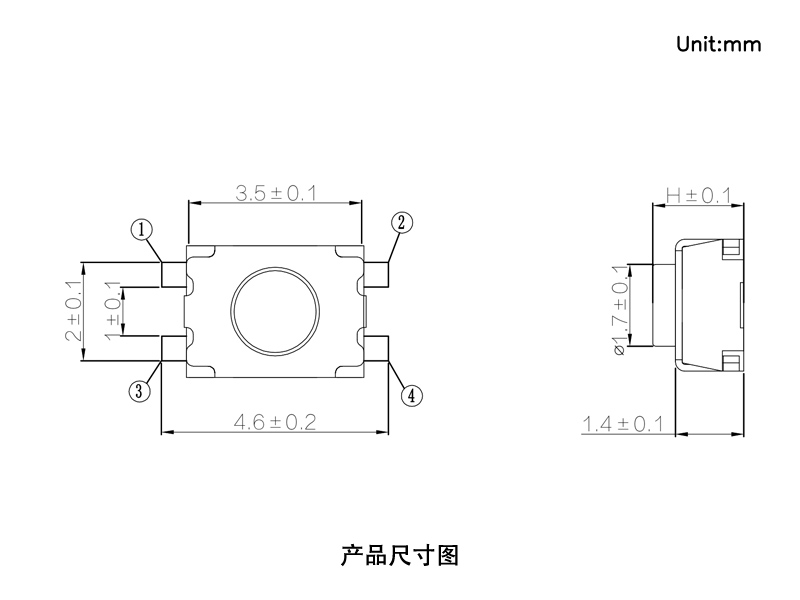

Dimensions:

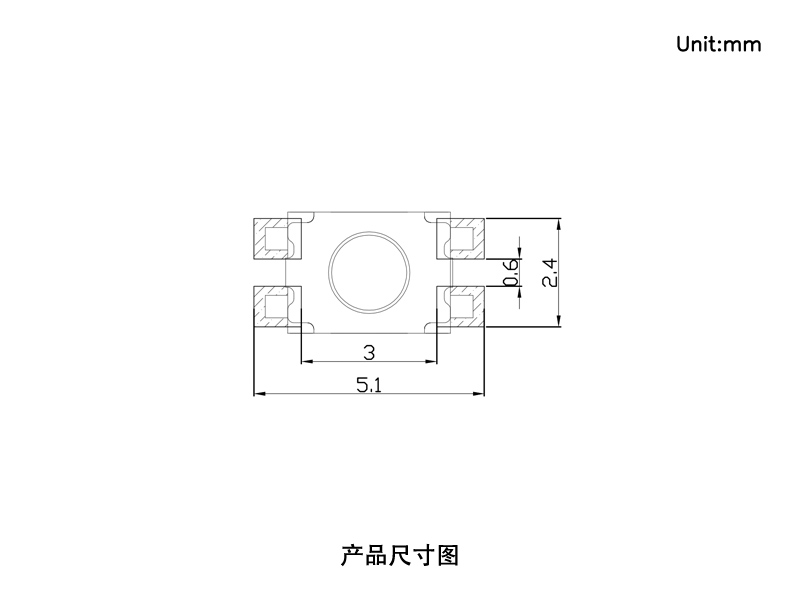

Welding diagram:

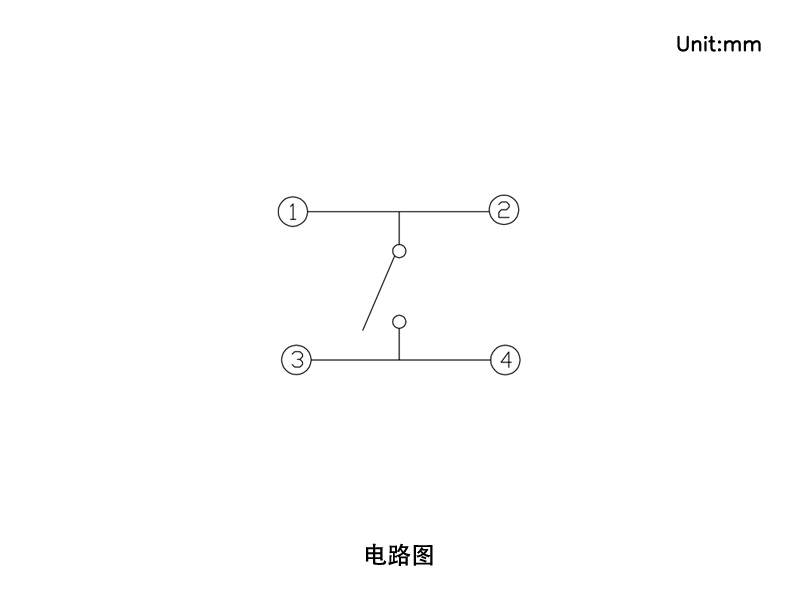

Circuit diagram:
