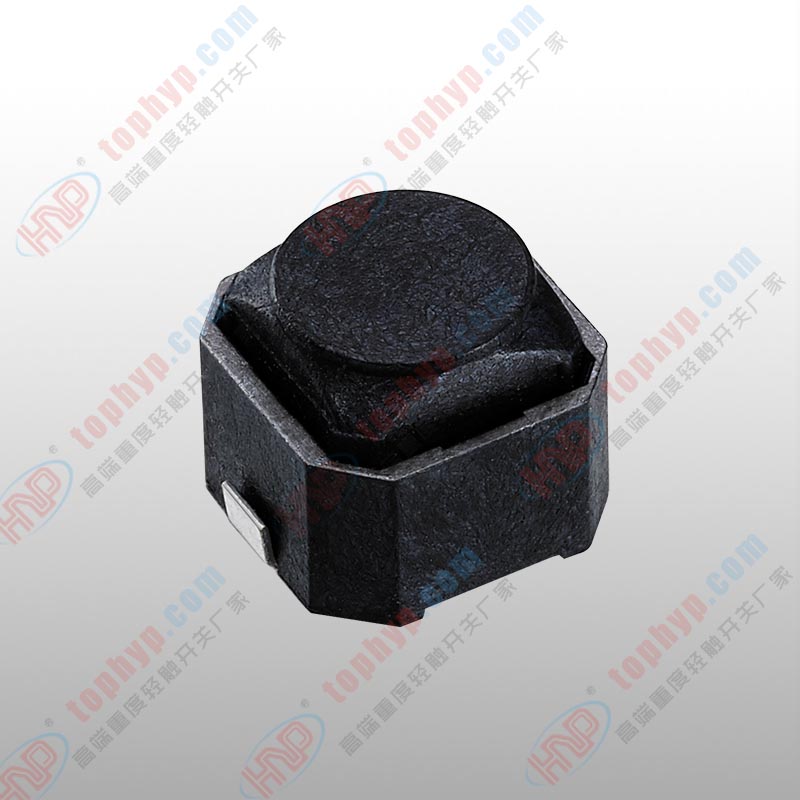

  • product name: Top press SMD6*6*5.0mm
  • Product Number: 1TS009A_5000
  • Material: LCP/BRASS/STAINLESS STEEL
  • Scope of application: Access control equipment buttons, igital caliper buttons, Router reset buttons, High-end toys


The silent switch has many special application scenarios: automobiles, infrared rangefinders, infrared sights, infrared imagers, selfie sticks, electronic telescopes, smart speakers, and other products sensitive to sound.









Item Tact switch detail Tact switch detail2
Article number 1TS009A 1TS009A
Model 1TS009A 1TS009A
Series 1TS009 1TS009
(LxW) (mm) 6*6mm 6*6mm
(H) (mm) 5.0±0.1mm 5.0±0.1mm
Installation height (mm) 5.0±0.1mm 5.0±0.1mm
Operation Top-press type Top-press type
Welding type SMD SMD
Live-fire type Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩmin DC100V 60S  100MΩmin
Withstanding voltage AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin
Response time <10ms  (ON, OFF) <10ms  (ON, OFF)
Operating force 180gf 250gf
Stroke Short stroke Short stroke
Stroke (mm) 1.3+0.2/-0.3mm 1.3+0.2/-0.3mm
Operating life 100000 or more 100000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging
Mini pakage 2000PCS/reel 2000PCS/reel

CTNS/QTY 10reel/ctn 10reel/ctn

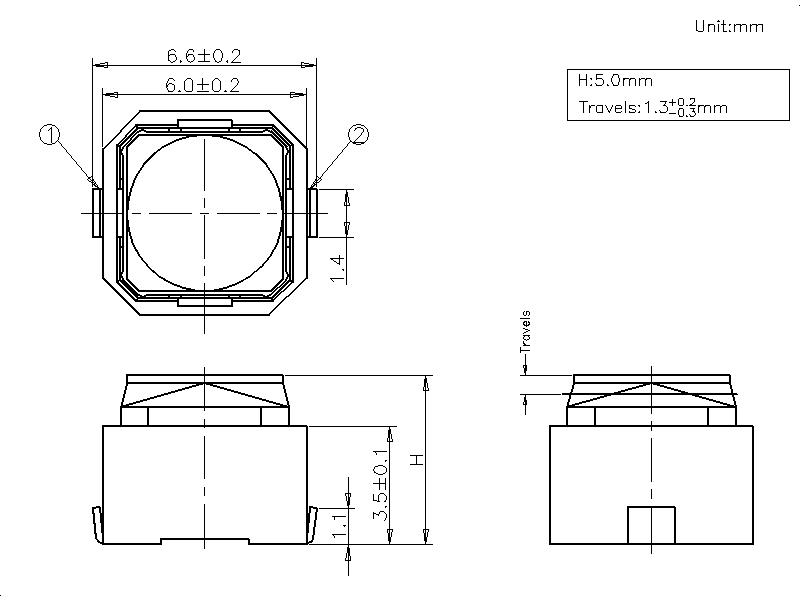

Dimensions:



Welding diagram:



Circuit diagram:

Key words : Top press switch,1TS009A,1TS009A-1800-5000-CT,1TS009A-2500-5000-CT
