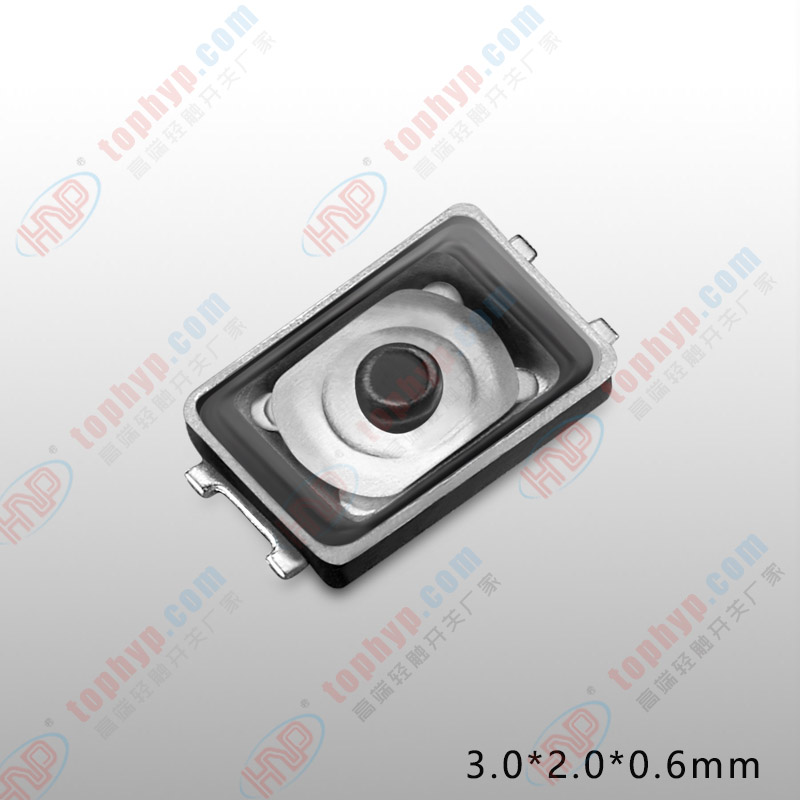

  • product name: Top push SMD3*2*0.6mm
  • Product Number: 1TS015A
  • Material: LCP/SUS301/SUS304/AG
  • Scope of application: Mobile phone switch,earphone switch ,intelligent wear equipment switch,Digital 3C Products switch,5g communication products switch,Mifi,CPE switch,Game console switch,Smart speaker switch,Driving recorder switch,car central control switch,Smart watch switch,


Ultra-small tact switch, widely used in products that require volume, supports IP67 waterproof rating, high-quality materials, and provides more stable performance.

Reference alternative:

  1. Panasonic:EVPAWBD4A,EVPAWBD40,EVPAWCD4A,EVPAWED4A
  2. ALPS:SKSWCEE010,SKSWCFE010,SKSWCGE010,SKSWDAE010
  3. Citizen:LS129C2D-T,LS129C3D-T,LS129C4D-T







Item Tact switch detail Tact switch detail2 Tact switch detail3 Tact switch detail4
Article number 1TS015A 1TS015A 1TS015A 1TS015A
Model 1TS015A 1TS015A 1TS015A 1TS015A
Series 1TS015 1TS015 1TS015 1TS015
(LxW) (mm) 3.0mm×2.0mm 3.0mm×2.0mm 3.0mm×2.0mm 3.0mm×2.0mm
(H) (mm) 0.60±0.1mm 0.60±0.1mm 0.60±0.1mm 0.60±0.1mm
Installation height (mm) 0.60±0.1mm 0.60±0.1mm 0.60±0.1mm 0.60±0.1mm
Operation Top-press type Top-press type Top-press type Top-press type
Welding type SMD SMD SMD SMD
Live-fire type Surface mount Surface mount Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max. 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩmin DC100V 60S  100MΩmin DC100V 60S  100MΩmin DC100V 60S  100MΩmin
Withstanding voltage AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin
Response time <10ms  (ON, OFF) <10ms  (ON, OFF) <10ms (ON, OFF) <10ms (ON, OFF)
Operating force 160gf 180gf 220gf 240gf
Stroke Short stroke Short stroke Short stroke Short stroke
Stroke (mm) 0.13±0.05mm 0.13±0.05mm 0.13±0.05mm 0.13±0.05mm
Operating life 500000 or more 500000 or more 300000 or more 300000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging Reel packaging Reel packaging
Mini pakage 10000PCS/reel 10000PCS/reel 10000PCS/reel 10000PCS/reel

CTNS/QTY 13reel/ctn 13reel/ctn 13reel/ctn 13reel/ctn

Dimensions:



Welding diagram:



Circuit diagram:
